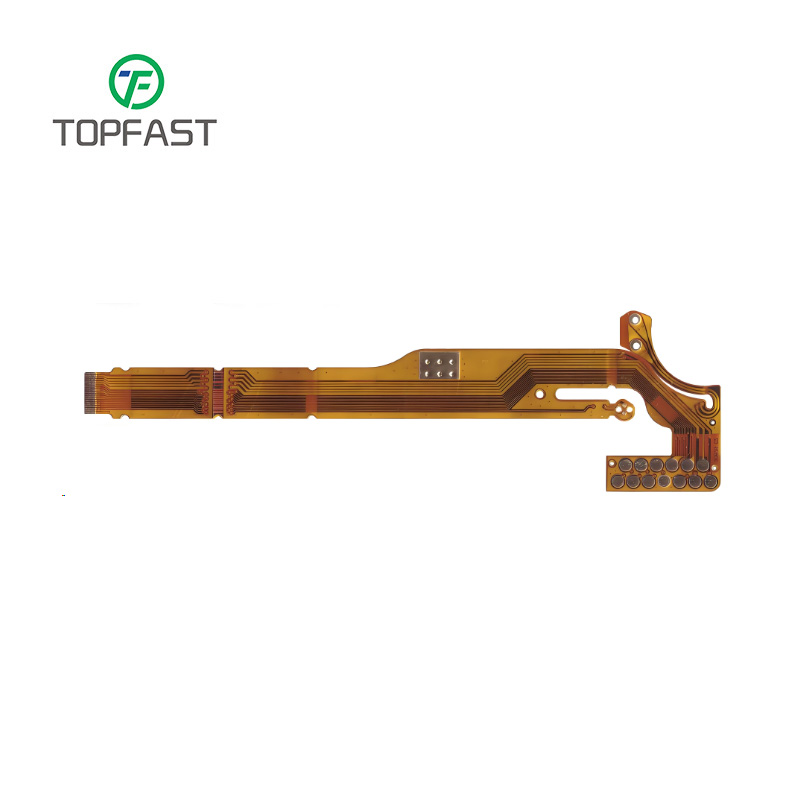

Description

Double-sided Flexible Printed Circuit Boards, DS-FPC for short, are circuit boards with conductive graphics laid on both sides of an insulating substrate. This type of circuit board connects the graphics on both sides through metalized holes to form a conductive path, thus meeting the design requirements of flexibility.

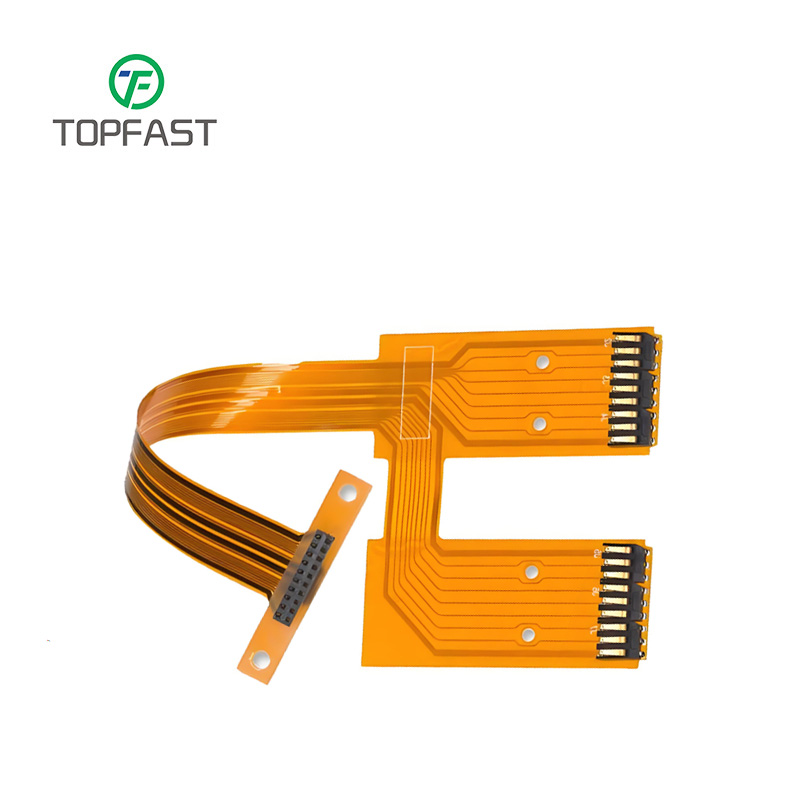

Structural Features

The main features of Double-Sided Flexible Printed Circuit Boards include
Double-Sided Routing: The conductive graphics are etched on both sides of the insulating substrate, and the graphics are connected to form a conductive path through metalized holes. Connect the two sides of the graphic to form a conductive path
Protective overlay film: used to protect single and double-sided conductors and indicate the placement of components

Parameters of double-sided flexible printed circuit boards

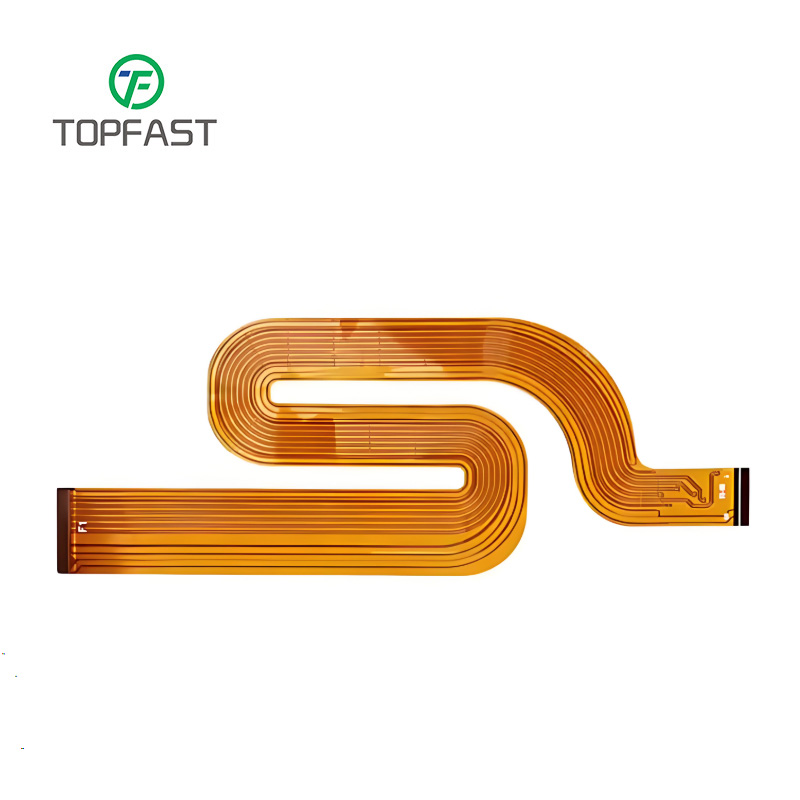

Key Advantages of Double-Sided Flexible Printed Circuits (Double-Sided FPCs)

Building upon single-sided FPCs, double-sided flexible circuits incorporate an additional conductive layer, significantly expanding design flexibility and functional integration. Their core advantages include:

1. High-Density Interconnect Design

• Dual-layer routing doubles wiring density, supporting more complex circuit topologies

• Microvia technology enables precise interlayer connections (minimum aperture: 50μm)

• Ideal for integrating high-pin-count ICs and fine-pitch components (<0.3mm)

2. Maximized Space Efficiency

• 3D stacked routing saves over 40% space compared to single-sided FPCs

• Foldable/rollable installations enable compact layouts in three-dimensional spaces (e.g., hinge-based devices)

• Replaces multiple rigid PCBs, reducing connector count by 60%

3. Enhanced Electrical Performance

• Dual-sided ground layers reduce signal crosstalk and EMI radiation by 30%

• Supports differential pair routing, improving high-speed signal integrity (for 5G/high-frequency applications)

• Optional shielding layers (copper foil/conductive ink) meet military-grade EMC requirements

4. Upgraded Mechanical Reliability

• Symmetrical structure design balances stress distribution, increasing bending cycles by 50% vs. single-sided FPCs

• Double-layer lamination (PI/PET + copper foil) enhances tear resistance

• Passes dynamic bending tests (>500,000 cycles @ R=1mm)

5. Multi-Functional Integration Potential

• Double-sided SMT assembly: Components can be mounted on both sides for modular integration

• Hybrid rigid-flex design: Reinforced sections (FR4 stiffeners) support heavy components

• Embedded components: Resistors/capacitors buried between layers further reduce thickness

Key Design Considerations for Double-Sided Flexible Printed Circuits (FPCs)

1. Minimum Bend Radius Design

The minimum bend radius (Rmin) is a critical parameter in double-sided FPC design. It is calculated as:
Rmin = C × t
Where:

• C = Empirical coefficient (material/application dependent)

• t = Total FPC thickness

Design Guidelines:

Material Impact:

• Electrodeposited copper (ED): Requires larger radii (C≥10) due to lower ductility

• Rolled annealed copper (RA): Permits tighter bends (C≥6) with superior flex endurance

2. Signal Integrity & EMI Control

• Routing optimization:

  • Minimize signal path length

  • Avoid sharp 90° turns (>45° preferred)

  • Limit via count to reduce reflections

• Impedance management:

  • Maintain consistent trace width/spacing

  • Use ground planes for RF/shielding

• Power distribution:

  • Widen power/ground traces to reduce noise

  • Implement star grounding for sensitive circuits

3. Mechanical Reinforcement Strategies

• Bending zone design:

  • Route traces parallel to bend axis

  • Eliminate vias in flex areas

  • Use radial transitions (no sharp corners)

• Stress relief features:

  • Apply PI stiffeners at connector interfaces

  • Add FR4 reinforcements in high-stress regions

  • Implement tapered coverlay edges

4. Advanced Material Selection

5. Multilayer Design Considerations

• Layer stacking:

  • Symmetrical construction to prevent warping

  • Shield critical signals with adjacent ground layers

• Via management:

  • Use laser microvias (50–100μm) for HDI designs

  • Stagger via locations across layers

6. Thermal Management Solutions

• High-power applications:

  • Embed thermal vias under heat-generating components

  • Integrate aluminum heat spreaders in rigid sections

  • Use thermally conductive adhesives (≥3 W/mK)

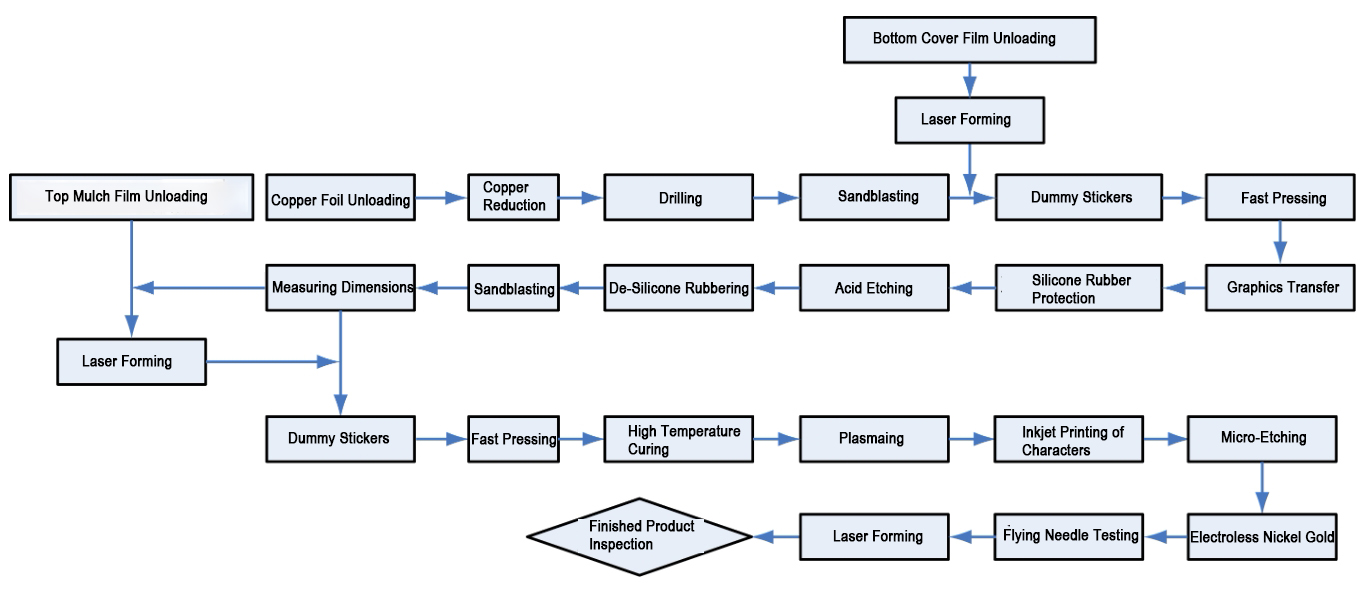

Double-Sided FPCs Manufacturing Process

The manufacturing process for double-sided flexible printed circuit boards consists of the following major steps:
Substrate Preparation: Selection of a suitable insulating substrate, such as polyimide (PI) or polyester (PET).
Wiring Etching: Wiring etching is performed on each of the two sides of the substrate to form a conductive pattern.
Metallized Hole Production: Form metalized holes on the substrate through drilling and plating processes to achieve conductive connections between different layers.
Covering Film Covering: Cover the wiring and metalized holes with a protective film to ensure the stability and durability of wires and connecting points to ensure the stability and durability of wires and connecting points

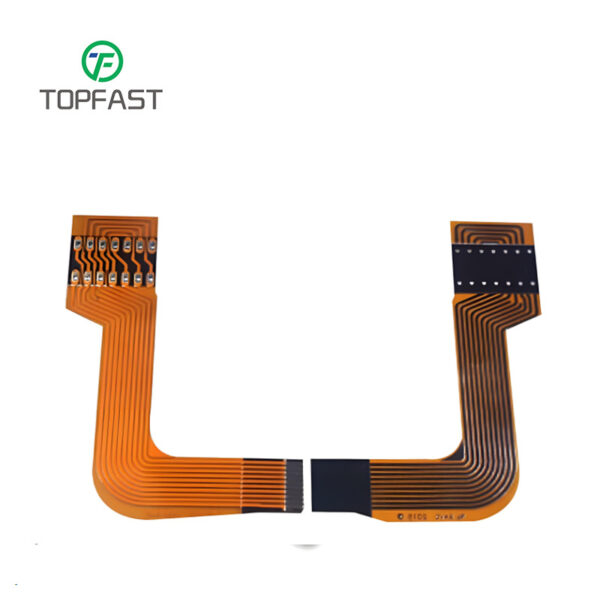

Application Scenarios

Double-sided Flex PCBs are widely used in a variety of applications where flexibility and reliability are required, including but not limited to:
Consumer Electronics: such as flexible connectors in devices such as smartphones and tablets.
Automotive electronics: In various sensors and controllers inside automobiles, double-sided flex PCBs can provide better bending and vibration tolerance.
Industrial Controls: In automation equipment and robotics, double-sided flex PCBs can accommodate complex mechanical movements and space constraints.
