Resistors are one of the most fundamental and essential components in electronic circuits, serving multiple critical roles such as current limiting, voltage division, current splitting, energy conversion, and signal processing. This article provides a detailed breakdown of the core functions of resistors, helping engineers, electronics enthusiasts, and industry professionals better understand and apply this component.
1. Current Limiting
Resistors restrict the flow of electric current, protecting sensitive components from damage due to excessive current. According to Ohm’s Law (V = IR), adjusting the resistance value (R) allows precise control over the current (I). For example, a resistor in series with an LED prevents excessive current that could burn out the LED.
2. Voltage Division & Current Splitting
- Voltage Division: In a series circuit, resistors divide the input voltage proportionally. For instance, two resistors in series distribute voltage based on their resistance ratios, commonly used in sensor signal conditioning and voltage reference circuits.
- Current Splitting: In parallel circuits, resistors distribute total current across different branches, ensuring each component receives the appropriate operating current for improved stability.
3. Energy Conversion & Power Dissipation
Resistors convert electrical energy into heat (Joule’s Law, P = I²R), making them useful in heating devices like electric water heaters and stoves. They also act as “load” components, absorbing excess energy to prevent circuit overload.
4. Signal Processing & Conditioning
- AC/DC Signal Handling: Resistors are frequency-independent, making them suitable for signal attenuation, impedance matching, and filtering.
- Specialized Resistors: Components like thermistors (temperature-sensitive) and varistors (voltage-sensitive) are used in sensors, protection circuits, and automated control systems.
5. Circuit Protection & Stability Enhancement
Resistors help suppress inrush currents, improving circuit stability. For example, a series resistor at a power supply input reduces transient current spikes, protecting downstream components.
Conclusion

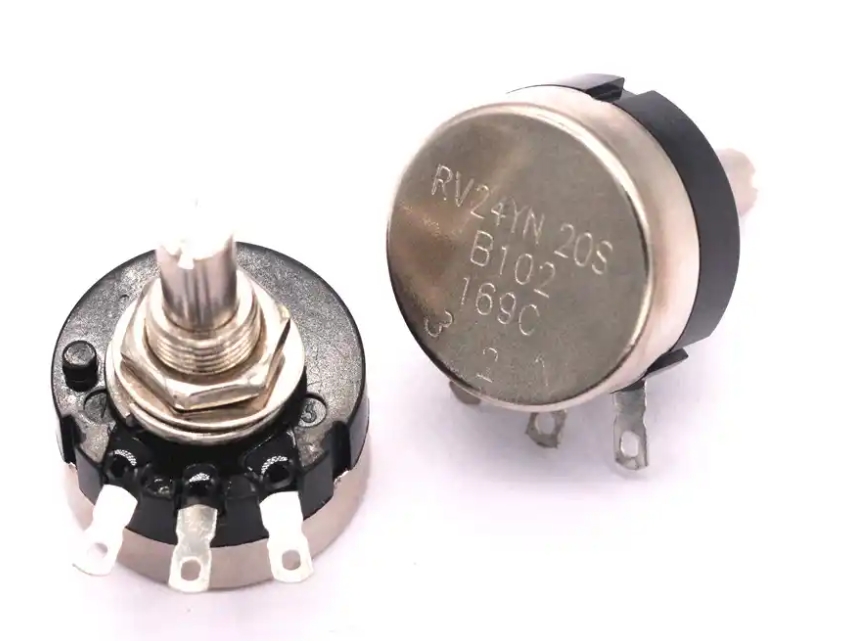

As a cornerstone of electronic design, resistors are indispensable for current regulation, voltage distribution, signal processing, and circuit protection. When selecting a resistor, factors like resistance value, power rating, tolerance, and type (fixed, variable, or specialized resistors) must be considered to meet specific application needs.
